ACS-AP-I 3ABD0000088311 ABB ACS880 Control Panel

1.Overview of the ACS-AP-I 3ABD0000088311 ABB

ABB ACS-AP-I 3ABD0000088311 assistant control panel, plug in to operate the entire ACS380/580/880 series, with a Chinese graphical user interface, real-time oscilloscope, and data logging, allowing commissioning, diagnosis, and energy-saving analysis without the need for additional software.

User-Friendly Commissioning Experience: The ACS-AP-I is designed to allow users to perform basic settings and get the drive up and running without having to delve into complex parameter lists. Its graphical interface and clear guidance significantly reduce commissioning time and reduce the need for operator expertise.

Broad Compatibility: This control panel's strength lies in its excellent compatibility. It works not only with the ACS180 drive, but also with a wide range of ABB drive series. This means that a single control panel can be used across a wide range of ABB equipment, maximizing tool utilization.

Flexible Mounting Options: To accommodate diverse control cabinet designs, the ACS-AP-I can be used with dedicated control panel mounting platforms. For example, the DPMP-01 is designed for flush-mount installation, while the DPMP-02 is designed for surface mounting, providing maximum flexibility in field wiring and usage.

2.Core Features:

ABB Assistant Control Panel
Model: ACS-AP-I
Order Number: 3ABD0000088311
1. Core Parameters
Applicable Drives: ACS380/480/580/530/880, ACH580, ACQ580, ACS530, and other full series, plug-and-play compatible
Display: 4-inch TFT color, 320 × 240 px, outdoor readable
Keys: 5 dynamic softkeys + 4 arrow keys + rotary shuttle
Interfaces:
– RJ-45 female (RS-485, Modbus-RTU)
– USB 2.0 Device (parameter cloning/PC direct connection)
– Bluetooth 4.0 dual-mode (Classic + BLE, optional)
Power Supply: Directly from the drive's 24 V bus, power consumption < 1 W
Enclosure: IP55 when panel-mounted; IP20 when standalone
Environmental: Operating -20…+55°C; Storage and Transportation: -20…+55°C -40…+70°C; Altitude 4000 m; Relative humidity 95% non-condensing
Weight/Dimensions: 130 g; Height 120 × Width 70 × Depth 35 mm
Certifications: UL, cUL, CE, C-Tick, RoHS, China RoHS (20-year EFUP)

2. Main Features
Graphical wizard menu
Instant switching between 20 languages, including Chinese and English; Motor auto-tuning, energy-saving calculator, and PID setting in three steps.
Built-in oscilloscope & data logger
4-channel real-time curves (current, frequency, DC bus, torque), 10 kHz sampling, 8 MB internal storage; One-click export to CSV format to USB flash drive for on-site troubleshooting.
Energy Savings and Carbon Emissions Calculator
Real-time display of kWh, CO₂ emissions reductions, and energy savings in local currency, with automatic audit report generation for ISO 50001 compliance management. Hot Swapping/Parameter Cloning
Supports 100,000 hot swaps during operation without disconnection; clones all parameters to 100 identical drives in 1 minute, significantly reducing OEM batch commissioning time.
Multi-Device Navigation & Bluetooth Remote Control
Cascade up to 32 drives via the RJ-45 bus, allowing for arbitrary address switching on the panel. Bluetooth 4.0 dual-mode supports free remote monitoring via mobile phone/laptop via Drive Composer Lite.
Fault Diagnosis Assistant
Automatically displays the cause of the fault, possible sources, and troubleshooting steps. Built-in help graphics allow on-site troubleshooting without having to consult the manual.
Rugged and Durable
Survives 1.5 m drops onto concrete and maintains normal display at -20°C. Coated PCB resists moisture, dust, and corrosion, making it suitable for harsh environments such as textiles, pumps, ports, and plateaus.

3. Typical Applications
HVAC, constant pressure water supply, fan and pump energy-saving retrofits
Food, textile, printing, machine tool OEM applications
Power plants, water treatment, data center cooling, subway tunnel ventilation
Any ABB drive site requiring mobile commissioning, energy efficiency audits, or remote monitoring

4. Ordering Information
Model: ACS-AP-I
Order Number: 3ABD0000088311
Package: Control panel + 2m extension cable + USB data cable + Chinese/English Quick Guide
Plug and play, instantly transforming the drive into a "visualized intelligent node"—the ACS-AP-I is the inverter expert in the pocket of field engineers.

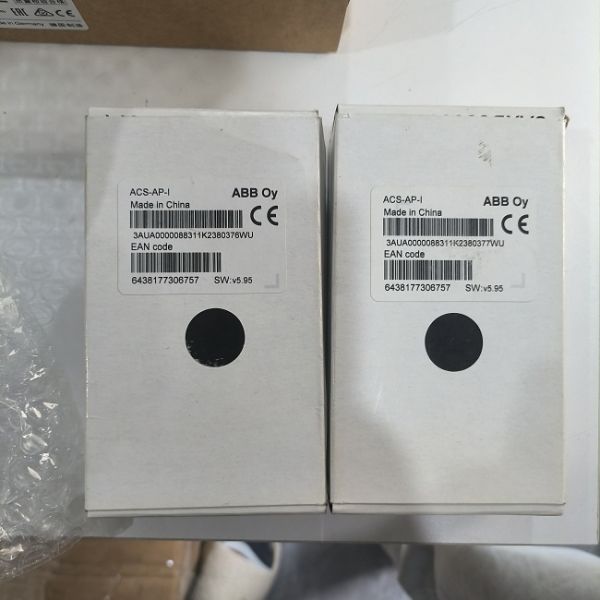

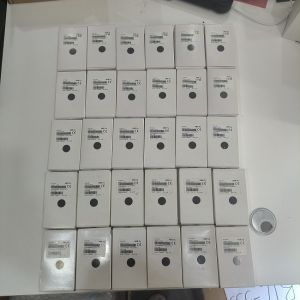

3.Product details pictures
